Ze-PRO AVB

PRODUCT SUMMARY

Ethernet AVB(Audio Video Bridging) is a networking standard developed by the IEEE to transport timing-critical data such as audio and video over Ehernet.
Ze-PRO AVB (Endpoint) is a protocol stack library to easily implement endpoint function of Ethernet AVB.

▶Contuct us

for Automotive Use

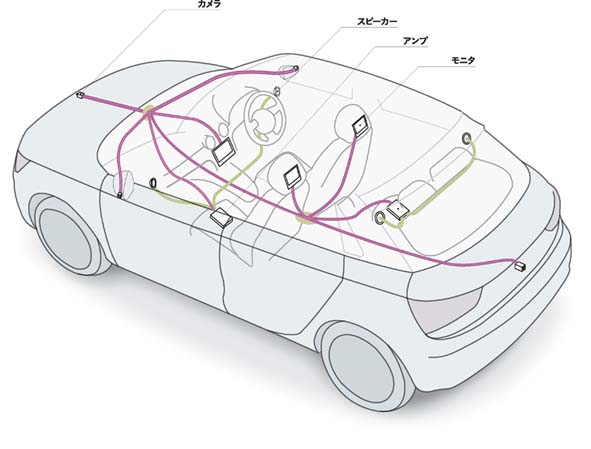

When used in automotive, EthernetAVB can simplify cabling and wiring for in-vehicle AV network connecting speakers, monitors and cameras. It reduces weight and increases fuel efficiency.
Functions of time synchronization and bandwidth reservation achieve a high-quality in-car AV infotainment

FEATURE

  • OS, CPU independent
  • Quality management by QAC/Klocwork
  • Catch up with updated standard

Proven Practices

CPU Renesas Electronics RZ/A1H, RZ/A1M, RZ/A1LU, RZ/G1M
RTOS LINUX
ARM   CMSIS-RTOS RTX
e-SOL eT-Kernel
Evaluation Board Renesas Electronics GENMAI-AVB board, RZ-A1LU AVB board
Hitachi ULSI Systems   Solution Engine G1

Ze-PRO AVB Evaluation Kit (RZ/A1LU AVB board)

Ze-PRO AVB Evaluation Kit (RZ/A1LU AVB board) is a hardware and software combination that allows users to try mutual communication via Ethernet AVB. The kit contains Ze-PRO AVB (Endpoint) implemented in RZ/A1LU, a suitable CPU for audio processing provided by Renesas Electronics.

  • Verify behavior of IEEE802.1AS (Time Synchronization), IEEE802.1Qat( Bandwidth reservation )and IEEE802.1Qav(Priority Control)
  • Verify transaction of Audio data (16-bits sampling, 2-Channels (L/R) from Talker to Lister in IEEE1722a AAF (AVTP Audio Format)
  • Software for IEEE1722a AAF configuration and analysis is provided in source code to enable format rewrite (ex. number of channels, change to another format)
  • Option kit is available for one to many and many to many transaction.

* AVB Switch is not required for one-to-one transaction

Configuration

Item Description Q’ty
CPU board Renesas Electronics RZ/A1LU AVB board
CPU: RZ/A1LU
2
PHY board TESSERA TECHNOLOGY INC. TSE-GbPHY004 (RJ45 I/F) 2
ICE SEGGER J-Link LITE ARM (*1) 2
Software (CD-ROM)
  • EthernetAVB Protocol Stack (binary code) (*2)
  • Talker and Listener sample application (source code)
  • BSP(Board Support Package)(*3)
  • User Manual
  • Quick Starter Guide
1
Note
  • (*1): (*1): J-Link LITE ARM is operable in RZ/A1LU AVB board only.
  • (*2):Original Ze-PRO AVB(Endpoint) protocol software product is CPU/OS independent while the protocol software in this kit is operable in RZ/A1LU AVB board only.
  • (*3): Real time OS is CMSIS-RTOS RTX
    e2studio /GCC integrated development environment is downloadable at Renesas Electronics web site.

Support Service

Technical support service and design consulting service is available.
